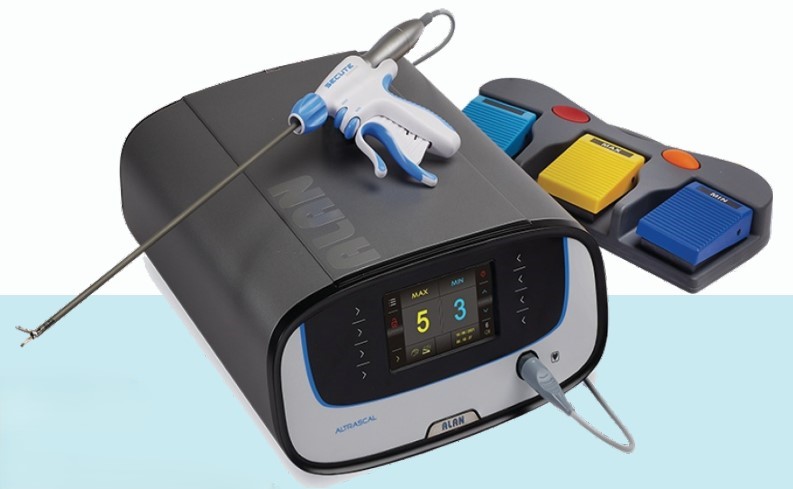

ALTRASCAL Ultrasonic Surgical System

  • Advanced Ultrasonic Energy Surgical System with High Performance
  • Universal Connector with Automatic Instrument Recognition
  • High-resolution 5″ LCD display with wider viewing angles at a glance
  • Touch screen for easy setup, operation, and on-screen diagnostics
  • Intuitive Design, Compact, Lightweight and easy to carry in OR
  • Energy delivered via high-frequency vibrations of-55,000 times per second
  • Minimal lateral thermal tissue damage, with Tissue Impedance Monitoring



Main FusesT5AL 250 V
(Time-delay, 5 Amp, Glass Body, 5x20mm Package size, Quantity-2)
Degree of protection against electric shockType CF applied part consisting of the SECUTE® instrument
Class of protection against electric stockClass 1
Ingress protection ALTRASCAL®enclosureIP 21
Ingress protection ALTRASCAL®footswitchIP 68
Display5″ LCD Touch Screen Display
Main Input88-285 V AC, 50/60 Hz, 450 VA
OutputSECUTE® Output: 150 VAC RMS maximum 35 watts continuous, 55.5 kHz
Ambient Operating ConditionsTemperature – 10°C to 40°C
Humidity – 10% to 90% non-condensing
Atmospheric Pressure Range – 600 hPa to 1200 hPa
Transport and Storage ConditionsTemperature – -35°C to 54°C
Humidity – 10% to 95% non-condensing
Atmospheric Pressure Range – 600 hPa to 1200 hPa
WeightGenerator – Max. 4.5 kg
Footswitch – Max. 1.5 kg
Overall DimensionsGenerator – 335 mm X 395 mm X 160 mm
Footswitch – 350 mm X 175 mm X 65 mm

Manufacturer Warranty Coverage (covers repair and standby equipment costs)

ProductWarranty Duration
ALTRASCAL® Generator and Power Cord2 Years
Wireless ALTRASCAL® Footswitch2 Years
Hand Piece/ Transducer12 Months/ 99 Usages (whichever earlier)
  • Preventive maintenance and output verification not included.
  • Wireless ALTRASCAL® Footswitch battery not covered under warranty.
  • Warranty Ex-Works.
ASGENO1ALTRASCAL® Generator
ASTHP01ALTRASCAL® Transducer/ Hand Piece
ASO140SSECUTE® Ultrasonic Shear for Open Surgery, 14 cm
ASO230SSECUTE® Ultrasonic Shear for Open Surgery, 23 cm
ASL360SSECUTE® Ultrasonic Shear for Laparoscopic Surgery, 36 cm
ASL450SSECUTE® Ultrasonic Shear for Laparoscopic Surgery, 45 cm
3PWFS-AWireless ALTRASCAL® Footswitch
