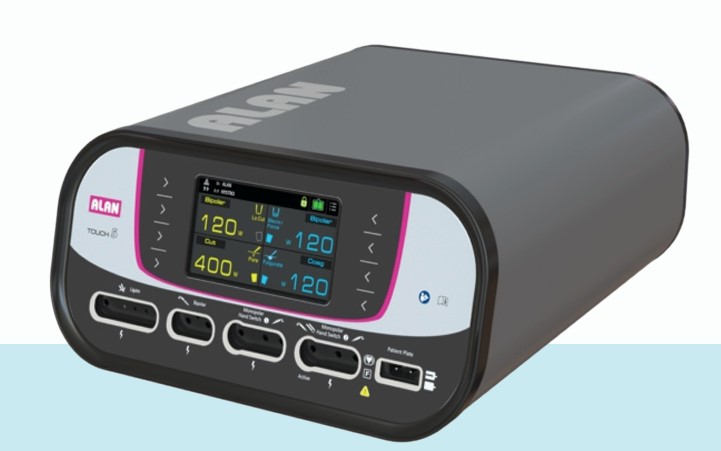

COMBI – Electro Surgical Generator
- Advance multiple microcontroller based generator for Open and Laparoscopic Surgeries.
- 5-inch LCD touch screen display with intuitive interface, and additional feather touch buttons.
- Intuitive User Interface facilitates easy program and modes selection with Seamless Operations.
- It Features 2 Monopolar and 1 Bipolar Sockets, for handswitch/footpedal without change over.
- It is compatible with universal accessories used in Monopolar and Bipolar Surgical Applications.
- Supports ALAN’s special Capacitive Patient Plate for maximum safety of the patients in surgeries.
- PPCM feature monitors patient’s contact quality and provides real-time graphical representation
- “Self-Test”, diagnoses at every “START UP” for Generator’s Healthiness & Operational Integrity.
- Automatically stops the power output and provides audio-visual indication during problem.
- Multiple cutting modes with varied regulated wattages for smooth and precise skin incisions.
- It has Isolated Monopolar and Bipolar outputs, Eliminating the Frequent need for Switch Overs.
- HF power output can be adjusted using touch screen and handswitch pencil from sterile field.
- Simultaneous monopolar coagulation for 2 surgeons via handswitch and footswitch pairing.
- Tissue monitoring technology measure Tissue Impedance & Dynamically varies the HF Output.
- Auto feature in Bipolar ensures Optimum Power Delivery and Efficacy, without Tissue Charring.
- System restores previous activated power settings when encountered power interruptions.
- “Current Meter Display” in the Bipolar Mode to Indicate the “Flow of Current” during surgeries.
- HF current leakage monitoring & controlling system supervises and controls it less than 10 uA.
- 99 +1 user programmable memory for surgeons to store & recall surgery preferences and details.
- Upgradeable and compatible with Argon Plasma Coagulation & Smoke Evacuator System.
- Pure : 400 W@ 350 Ohms CF 1.5
- Lapcut :300 W @ 350 Ohms CF 1.5
- Blend :250 W@ 350 Ohms (10 Levels) CF Variable
- EndoCut : 300 W@ 350 Ohms (10 Levels) CF 1.5
- Lo Spray : 120 W@ 350 Ohms CF 9.0
- Fulgurate : 150 W @ 350 Ohms CF 7.5
- Lo-Desi : 200 W @ 350 Ohms CF 3.0
- Soft :300 W @ 150 Ohms CF 1.5
- LowCut: 120 W@ 100 Ohms CF 1.5
- HighCut: 120 W@ 100 Ohms CF 1.5
- Cut : 120 W @ 100 Ohms CF 1.5
- Macro : 120 W @ 100 Ohms CF 1.5
- Macro : 120 W @ 100 Ohms CF 1.5
- Auto Start : Bipolar Micro with Auto-Start-Stop
- Input: 230 VAC ± 20%, 50Hz
- Power Consumption: 750VA Max
- Input Fuse: 5AT
- Output Control: Colour TFT Display with Touch Screen and Push buttons in all Modes
- Max. Power Output: 400 Watts
Basic Construction :As per IEС 60601-1, IEC 60601-1-2 & IEC 60601-2-2
- Protection Class: II
- Mdd. Class :IIb
- Pollution degree Class: II
- Overvoltage category: Π
- Class Unit Type : CF
- All Outputs: Floating Output (All output ports are CF Type)
- Electrical Potential: Connecting Pin and Indicated by Symbol
- Balancing PER: 98
- Dimension: 320mm (W) x 160mm (H) x 360mm (D)
- Weight: Maximum 7.0 Kg
- Ambient temperature range: +10° C to +40° C
- Relative humidity: 30% to 75% non-condensing
- Atmospheric pressure: 700 millibars to 1060 millibars
- Ambient temperature range: -30° C to +65° C
- Relative humidity: 0% to 90% non-condensing
- Atmospheric pressure: 500 millibars to 1060 millibars
